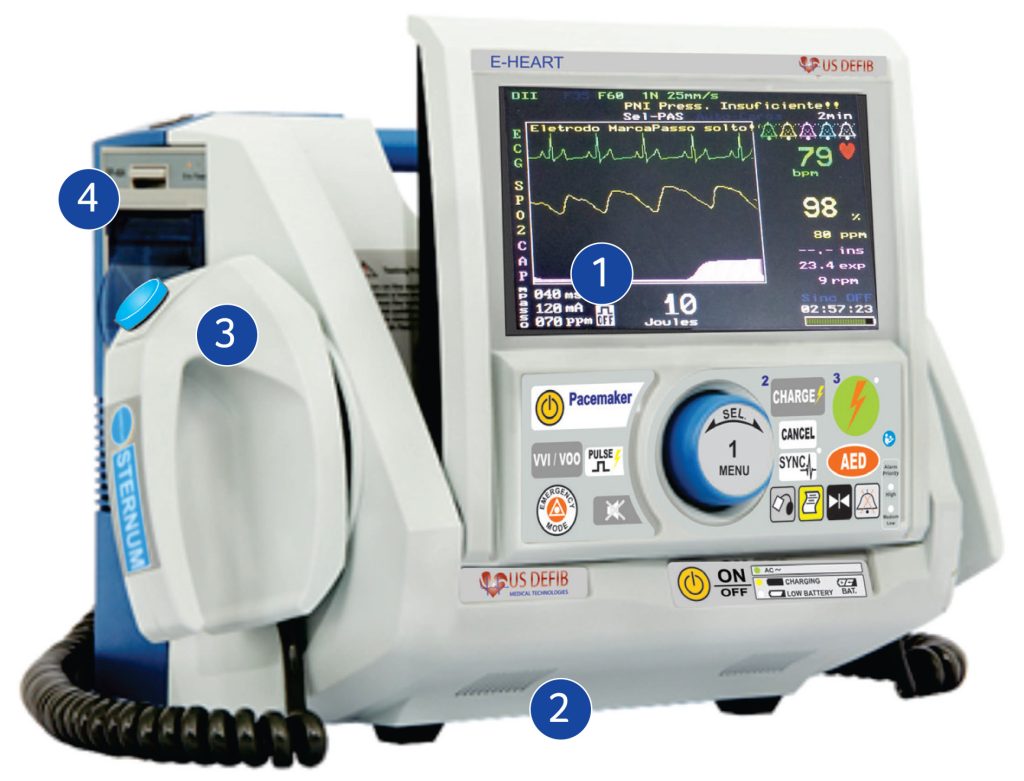

Defibrillator E-Heart

Lightweight, portable, easy to carry during emergency cardiac arrest

Monitor

7” High Definition Colored liquid crystal display – LCD for viewing the ECG, Pacemaker, AED mode, Oximetry, Capnography and NIBP parameters; battery status, alarms, day, time and shock counter indicators, Flip Down Technology Display; adjustable for different viewing angles.

Battery Type

Lithium Polymer internal rechargeable battery; Battery status indicator – Low, charging and charged; Capacity: Ability to perform up to 150 shocks (200 Joules) on a fully charged battery; or 4 Hours of continuous ECG monitoring.

Low battery alarm – audible and visual Battery Life: 5 Years (4 years recommended by themanufacturer to be exchanged) Charging time: 4 Hours (when the battery is completey discharged).

Reusable Paddles

Permanent interchangeable adult / pediatric paddles; Energy seletion and charging/discharging function External paddles contact indicator shows the patient’s chest contact on the display (adult and pediatric use).

Integrated Printer

Model: Thermal PrinterPrinting Format: 1 Channel Automatic or Manual Paper size: 48mmPrinter speed: 12,5 mm/s, 25 mm/s, 50 mm/s

ECG
Standard: 05 lead ECG Patient Cable – 12 derivations
(DI, DII, DIII, aVL, aVR, AVF, V1 to V6)
Optional: 03 lead ECG Patient Cable – 03 derivations (DI, DII, DIII)
Capture the ECG signal via defibrillation pads, transthoracic
adhesives of the pacemaker or via ECG Patient cable.
Heart rate: 10 to 300 bpm
Audible and visual alarms: Electrode loose, asystole, tachycardia, bra- dycardia and fibrillation with digital adjustment.
Freeze trace

Data Management
Internal Memory (2GB) to store 1000 events (Optional)

Defibrillation Electrodes
Shelf life: 24 months
Cable lengh: approx. 1.0m
Available: Adult and Pediatric hands-free electrodes

Languages Available:
English and Spanish

Dimensions
Weight: Aprox. 10lbs (4.5Kg)
9 X 10 X 9.5 inches
